Product Details:
Payment & Shipping Terms:
|
| Certification:: | CE, ISO9001 | Valve:: | Internal Valve Type Breaker |
|---|---|---|---|
| Package:: | Wooden Cases Or Pallets | Carrier:: | 19-26 Ton Excavator |
| Chisel Type:: | Moil, Wedge, Flat, Blunt, Conical Type Chisel Working Pressure: 160-180 Kg/cm2 | High Light:: | Hydraulic Hammer Breaker, Excavator Jackhammer |
| High Light: | Internal Valve Rock Jack Hammer,Hydraulic Rock Jack Hammer,Hydraulic Rock Hammer For Excavator |
||
Description
1. Supplied ready to use with hydraulic hoses, tool, N2 gas charging kit
2. Easy fitment onto any kinds of excavators
3. Durable body incorporating heavy duty rock claws
4. Perfectly matched tool and piston ensure maximum energy transfer to the material being broken
5. The hydraulic accumulator gives greater acceleration in the power stroke and reduces pressure peaks in the carrier hydraulic system.
Hydraulic Breaker Type
Side type hydraulic breaker has the advantage of convenient maintenance and flexible operation, it's the first choice for mining and quarrying.
Top type hydraulic breaker is applied to special operation that in larger elevation angle at municipal project dismantling.
Silence type hydraulic breaker is fully compliance with international environmental standards,it can adapt to the urban demolition work and tunnel construction.
Application
1. mining—mining, second-time breaking
2. metallurgy—clearing slag, demolition of furnace and foundation
3. road—repairing, breaking, foundation work
4. railway—tunneling, demolition of bridge
5. construction—demolition of bulinding and reinforced concrete
6. ship repairing—clearing clam and rust from the hull
7. others—breaking frozen mud
Specification
Specification
| Model | Weight (Kg) | Length (Mm) | Pressure (kg/cm2) | Flux (L/Min) | Rate (Bpm) | Hose (Inch) | Chisel (Mm) | Suit (Ton) |
| JSB200 | 100/120 | 1100 | 90-120 | 15-25 | 700-1200 | 1/2 | 45/53 | 1.2-3.0 |
| JSB400 | 298 | 1347 | 110-140 | 25-45 | 500-900 | 1/2 | 68/70 | 3.0-5.5 |
| JSB600 | 421 | 1528 | 110-160 | 30-45 | 500-800 | 1/2 | 75 | 4.0-7.0 |
| JSB800 | 577 | 1920 | 120-170 | 45-85 | 400-700 | 3/4 | 85 | 7.0-14 |
| JSB900 | 973 | 2260 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |

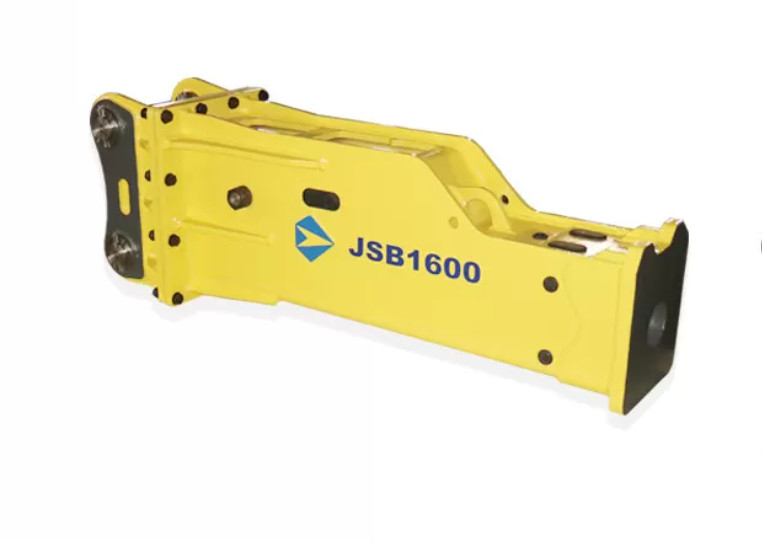

| JSB1600 | 1855 | 2695 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
| JSB1900 | 1989 | 2810 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
| JSB2800 | 2420 | 2895 | 160-180 | 150-190 | 350-500 | 1 | 150 | 27-38 |
| JSB3500 | 2750 | 3152 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
| JSB4500 | 3160 | 3310 | 160-180 | 200-300 | 250-350 | 1.25 | 165 | 36-45 |
| JSB5000 | 4210 | 3400 | 160-180 | 210-290 | 200-350 | 1.25 | 175 | 40-55 |
| JSB5500 | 4720 | 3400 | 180-220 | 220-300 | 200-250 | 1.25 | 185 | 50-60 |
| JSB6000 | 4910 | 3420 | 180-220 | 230-320 | 180-200 | 1.25 | 190 | 55-65 |
| JSB6500 | 6100 | 3700 | 190-230 | 360-450 | 120-200 | 1.25 | 210 | 65-100 |
