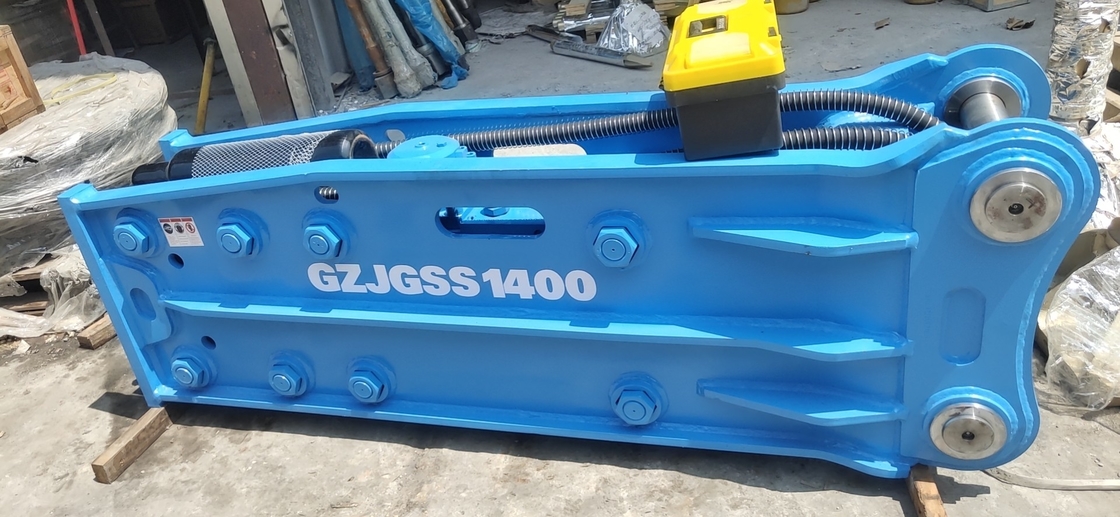

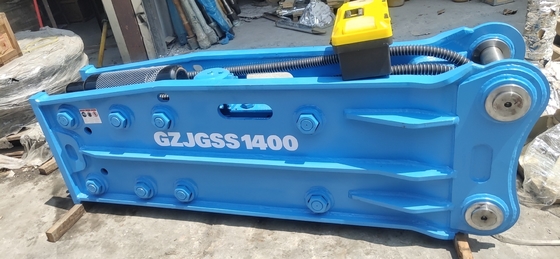

Concrete Demolition Excavator Breaker Hammer Hydraulic For Construction

Large Image : Concrete Demolition Excavator Breaker Hammer Hydraulic For Construction

Product Details:

Place of Origin:	china
Brand Name:	HAOFA
Certification:	CE, ISO9001: 2000
Model Number:	Excavator Breaker Hammer 140

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiate
Packaging Details:	Wooden box
Delivery Time:	15days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	5000PCS/MONTH

Contact Now

Detailed Product Description

Dimension::	Depending On The Specification Of Tool Maker	Hammer Rod Mm::	140
Material::	20CrNiMo, Forging Parts	Application::	Construction
Suitable Excavator(ton):	Excavator 18-25	After Warranty Service::	Video Technical Support, Online Support
Model Number:	HB20G	Using Time::	10 Years Just Replace Consumables
Certification::	ISO9001
High Light:	Hydraulic Excavator Breaker Hammer , Construction Excavator Breaker Hammer , Concrete Demolition Breaker Hammer

Hydraulic hammer for mechanical parts of excavator for demolition concrete breaker hammer

We have breaker hammer for following items

Catalogue

For Furukawa series:

part name	model	weight	length	hammer rod	operating pressure	operating flow	impact frequency	oil pipe	excavator weight
		kg	mm	mm	kg/cm2	L/min	bpm	inch	ton
hydraulic hammer	HB5G	170	1260	Φ75	120-140	32-68	400-900	Φ12	3.5-6
hydraulic hammer	HB10G	440	1860	Φ105	140-160	70-90	450-900	Φ19	9-12
hydraulic hammer	HB20G	1625	2295	Φ135	160-180	125-150	400-800	Φ25	18-25
hydraulic hammer	HB30G	2220	3005	Φ150	160-180	150-190	350-700	Φ25	25-32

HTP series:

part name	part no	weight	working flow	working pressure	working frequency	rod dia	capacity of excavator bucket	excavator weight
		kg	L/min	Mpa	Hz		m3	ton
hydraulic hammer	HTP50	50	10-20	10-12	10-12	φ40.7	0.015-0.05	0.5-2.5
hydraulic hammer	HTP70	70	25-35	9-10	10-13	φ45	0.02-0.08	1.0-2.0
hydraulic hammer	HTP80	80	25-35	9-10	10-13	φ47	0.02-0.08	1.0-2.0
hydraulic hammer	HTP90	90	25-35	9-10	10-13	φ50	0.02-0.08	1.0-2.0
hydraulic hammer	HTP110	110	30-45	9-11	8.5-14	φ57	0.07-0.15	1.5-4.0
hydraulic hammer	HTP120	120	30-45	9-11	8.5-14	φ57	0.07-0.15	1.5-4.0
hydraulic hammer	HTP180	180	35-60	10-12	7.5-13.5	φ65	0.10-0.25	3.0-5.0
hydraulic hammer	HTP230	200	36-65	13-17	10-15	φ70	0.15-0.25	3.0-5.5
hydraulic hammer	HTP330	330	45-65	10-12	8.3-12.2	φ75	0.2-0.35	5-10
hydraulic hammer	HTP460	460	45-90	11-14	6.5-16	φ80	0.30-0.50	5.0-13
hydraulic hammer	HTP560	560	35-70	12-15	6-12	φ90	0.35-0.55	5-13
hydraulic hammer	HTP750	750	70-110	14-17	7-12.5	φ100	0.50-0.80	8.0-16
hydraulic hammer	HTP950	950	90-140	12-14	6.7-10	φ106	0.5-0.8	8-16
hydraulic hammer	HTP1400	1400	160-200	12-14	6.5-8.5	φ126	0.7-0.9	17-21
hydraulic hammer	HTP1500	130-170	12-14	10-14	12-15	φ135	1.00-2.00	18-40

For SOOSAN series:

MODEL NO.	SB40	SB43	SB45	SB50	SB70	SB81N	SB81	SB121	SB131
EXCAVATOR	4.0-7.0	6.0-9.0	1-14 Ton	11-16 Ton	15-18 Ton	18-21 Ton	21-26 Ton	28-35 Ton	30-45 Ton
CHISEL	70	75	85mm	100mm	125mm	135mm	140mm	155mm	165mm
IMPACT RATE	500-900	400-800	400-800 b.p.m	350-700 b.p.m	350-650 b.p.m	350-600 b.p.m	350-500 b.p.m	350-450 b.p.m	250-400 b.p.m
PRESSURE	110-140	120-150	130-160 kg/cm²	150-170 kg/cm²	150-170 kg/cm²	160-180 kg/cm²	160-180 kg/cm²	160-180 kg/cm²	160-180 kg/cm²
REQ. OIL FLOW	40-70	50-90	60-100 L/min	80-110 L/min	90-120 L/min	100-150 L/min	120-180 L/min	180-240 L/min	200-260 L/min
WEIGHT	330	450	680 kg	1000 kg	1300 kg	2000 kg	2050 kg	3300 kg	3400 kg
HOSE DIAMETER			3/4 in	3/4 in	1 in	1 in	1 in	5/4 in	5/4 in
LENGTH			2101 mm	2401 mm	2592 mm	2822 mm	2828 mm	3254 mm	3450 mm

Concrete Demolition Excavator Breaker Hammer Hydraulic For Construction 0

From the factory to our customer's destination, we will conduct all-round supervision.We can also help tosign purchase order contracts, test product quality, guarantee timelydelivery, and accomodate specialorders.

are you a factory or trading company?
We are a professional manufacturer.
Can you make products with our brand?
Surely,we are welcome to cooperate as customized service.
What services can you provide?
1. One year warranty,free replacement for broken ones with abnormal wear life.
2. Provide technical support to our customers.
3. Help you to explore your market.
4. VIP treatment to our exclusive agent.
