Mini Excavator Ripper Attachment Q345 NM400 For Digging Soil

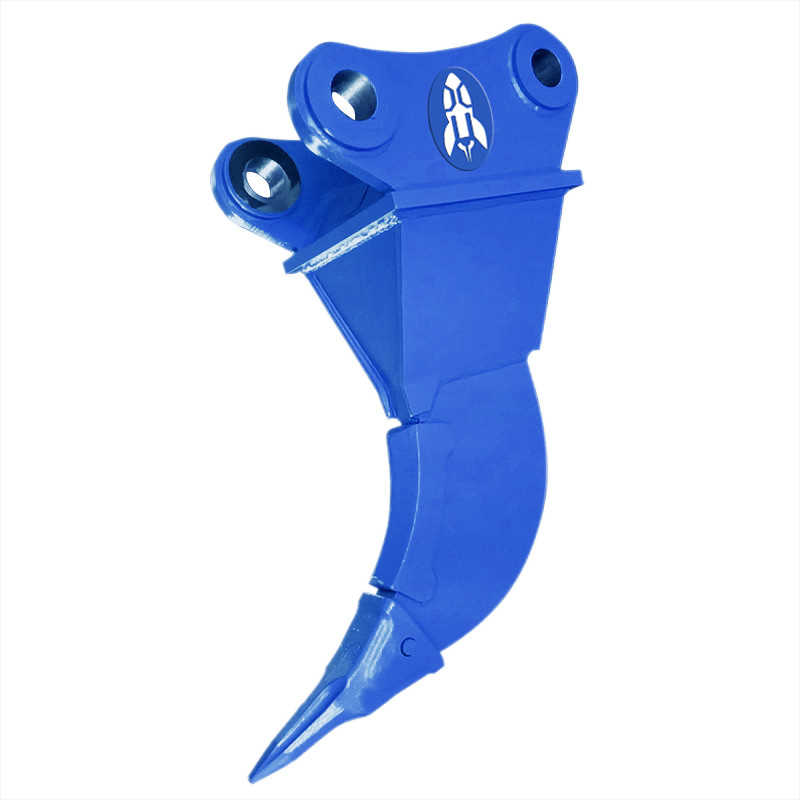

Large Image : Mini Excavator Ripper Attachment Q345 NM400 For Digging Soil

Product Details:

Place of Origin:	china
Brand Name:	HAOFA
Certification:	CE ISO
Model Number:	Customer's Request

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiate
Packaging Details:	PP bag Carton Plywood Case Plywood Pallet Wooden Case, or as Required
Delivery Time:	15days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	1000 Set/Sets per Month

Contact Now

Detailed Product Description

Dimension::	Depending On The Specification Of Tool Maker	Application::	Digging Hard Soil
After Warranty Service::	Video Technical Support, Online Support	Warranty::	6 Months
Certification::	CE ISO	Color::	Blue Or Ascustomer Requirement
Part Name::	Ripper Attachment	Material::	Q345+NM400
Suitable Excavator(ton)::	20-30 Ton Excavator
High Light:	Digging Excavator Ripper Attachment , Q345 Excavator Ripper Attachment , Digging Mini Excavator Ripper

Excavator Ripper Attachment Mini Excavator Ripper

Product Description

Item/Model	Unit	02	04	06	08	10	14	17
A	mm	265	310	390	465	520	570	Customized
B	mm	375	420	570	665	750	830	850
C	mm	390	950	1200	1250	1400	1480	1550
E	mm	150-180	180-200	200-315	300-350	360-420	360-420	400-500
Pin diameter	mm	40-50	50-55	60-70	70-80	80-90	80-90	90-110
Weight	kgs	70	165	255	420	620	780	830
Excavator	ton	4-6	5-9	9-16	16-23	23-30	30-39	40-49

available for brand as below:

Model	Ton Range	Width A (mm)	Height H (mm)	R (mm)	Length B (mm)	Weight (kgs)	Tine Thickness	Teeth	Material
RS-RMINI	1-3T	240	470	450	320	45	35	J220	Q345
RS-R40	3-5T	280	530	480	360	55	35	J220
RS-R50	5-8T	290	600	550	410	65	40	J-250
RS-R80	8-12T	345	720	642	492	135	50	J-250
RS-R120	12-16T	410	1065	1030	760	266	60	1U3352RC	Q345 + NM400
RS-R200	18-23	533	1365	1267	862	510	80	D8 4T5451
RS-R250	23-29T	580	1406	1306	850	610	80	D8 4T5451
RS-R300	30-36T	636	1541	1452	930	836	100	D9 4T5502
RS-R450	40-52T	760	1650	1515	974	1080	100	D9 4T5502
RS-R500	55-65T	830	1760	1609	1050	1670	110	D11 9W4551
RS-R850	70-100T	930	1934	1836	1120	1970	110	D11 9W4551

We also can be made as customer's drawings.

Excavator Ripper

Shank ripper which is with a sharp tooth on the front which goes beneath the ground deeply to release the dirt for further excavation. Applied Size: It’s for 1 to 50 tons under most circumstances, but we could make it larger to fit customers’ s require. Characteristic: a. Designed just for ripping, the ripper could reduce the amount of pressure added to the excavator itself, achieving more safety. b. It could dig deeply into the earth which is handpicked or frozen. Features: a.Generally with one single tooth could be two or three; b.Strong digging and penetrability. Applications: Breaking of hardpan, sub-hard rock, and weathered rock. It’s commonly applied in any area which is with frozen, rock, or paved ground which impedes further excavation.

Quality is guaranteed Faster Safer
1. 12 month after-sales warranty
2. We have the profession team (Pre-sale service, Technical team, After-sales service.) and will solve all your problems.
3. 13 years working experience in this filed.

Guangzhou Haofa Machinery Co.,Ltd is a leading manufacturer for excavator attachments in China,
established in 2009, we supply one stop solution, such as hydraulic breaker, quick hitch, log/stone/steel grapple, hydraulic
compactor, excavator pulverizer, shear, ripper, bucket, earth auger, rake, thumb, etc.

All products’ quality are strictly under control from processing to delivery, by continuous innovation and improvement, our
products have been exported to many countries and regions all over the world.

"Quality and Innovation " is our commitment, you are welcome to work together, we will keep on improving the products to better
serve the world market.

FAQ

Q1. How many days for the delivery time ? It is about 3-7 working days after the order confirmation.

Q2. What kind of payments you accept? Now we accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance to guarantee buyer's property.

Q3. Are you able to manufacturing products according to customer's design? Sure, we have made many special orders from oversea for 10 years since 2010. So we have enough ability to deal with any cases. OEM certificate is available to provided.

Q4. What's your advantages in the machinery manufacturing industry? Fast delivery time, High quality products, Best customer service, Adopting the latest production technology.

Q5. Which countries have you been exported recently? Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.

Q6. Are you sure that your product will fit my hydraulic breaker? We have different brand hydraulic breaker seal kit. Show me your model number, and we can give you best match products.

Q7. How about the packing of the goods? Standard export package, wood cases, or as customers' demands.
