20 ton 30 ton Excavator Breaker Hammer Hydraulic Machine 100mm

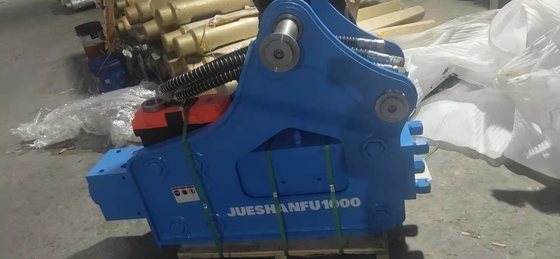

Large Image : 20 ton 30 ton Excavator Breaker Hammer Hydraulic Machine 100mm

Product Details:

Place of Origin:	china
Brand Name:	HAOFA
Certification:	CE, ISO9001: 2000
Model Number:	Excavator Breaker Hammer 140

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiate
Packaging Details:	export plywood case, sea transport
Delivery Time:	15days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	3000PCS/MONTH

Contact Now

Detailed Product Description

Dimension::	Depending On The Specification Of Tool Maker	Hammer Rod Mm::	100
Weight、Length::	1900 Kg✖️ 2480mm	Application::	Construction
Suitable Excavator(ton):	Excavator 18-26ton	After Warranty Service::	Video Technical Support, Online Support
Working Flow Rate::	120-180L/min	Using Time::	10 Years Just Replace Consumables
Certification::	ISO9001
High Light:	20 Ton Excavator Breaker Hammer , 100mm Excavator Breaker Hammer , 30 Ton Excavator Hydraulic Hammer

100mm Breaker Hammer Machine Hydraulic Hammer for 20ton 30ton excavator

We have breaker hammer for following items

Side Type Breaker

Reducing total-length

More easier to handle

the breaking objects

low maintenance.

Silence Box Type Breaker

1.Low noise level

2.Full-closed bracket protects

main body from damage.

Top Type Breaker

Easy-operating to achieve excavation work

Without side weight, reducing the rate of chisel breakage

longer total-length and heavier total-weight.

model	unit	DEHN400	DEHN450	DEHN530	DEHN600
operation weight(side/top/box)	kg	70/75/102	95/95/126	138/138/152	180/180/224
length(side/top/box)	mm	910/1086/1190	1090/1235/1331	1178/1344/1417	1239/1460/1472
working flow rate	1iter/min	15-25	20-30	25-50	30-60
oil relief pressure	kg/cm²	160	160	160	160
working pressure	kg/cm²	90-120	90-120	90-120	100-130
impact rate	bpm	800-1400	700-1200	600-1000	500-1000
chisel diameter	mm	¢40	¢45	¢53	¢60
oil pipe nominaldiameter	inch	1/2	1/2	1/2	1/2
back head pressure	kg/cm²	16	16	16	16
Accumulator pressure	kg/cm²	/	/	/	/
Applicable Excavator weight	ton	0.8-2.5	1.2-3.0	2.5-4.5	3-5.5
Applicable Bucket	m³	0.07	0.03-0.1	0.06-0.2	0.06-0.2
Value Ass'y Position		internal	internal	internal	internal

FAQ

1. Is that the main body color customized? Sure ,but we recommend you yellow, blue and orange.
2. How many days for the deliverytime ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance to guarantee buyer's property.
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from oversea for 10 years since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production

technology.
6. Which countries have you been exported recently?
Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.

7. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we can give you best match products
8. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
