Product Details:
Payment & Shipping Terms:
|
| Weight:: | 250 Kg | Length:: | 1349MM |
|---|---|---|---|
| After-sales Service Provided:: | Free Spare Parts, Online Support | Certification:: | ISO90012015 |
| Applicable Industries:: | EXCAVATOR | Video Outgoing-inspection:: | Provided |
| High Light: | Concrete Excavator Breaker Hammer,1349MM Excavator Breaker Hammer,Hydraulic Rock Breaker Hammer |
||

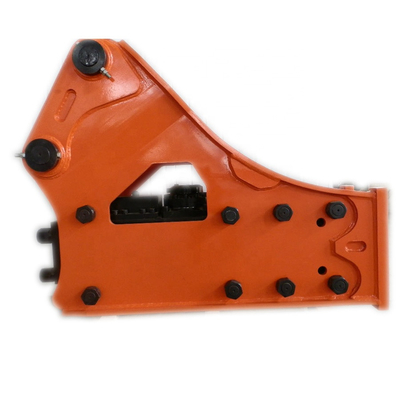

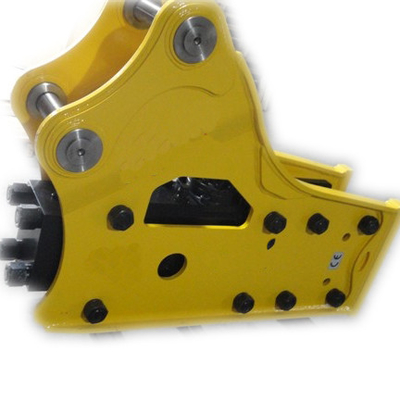

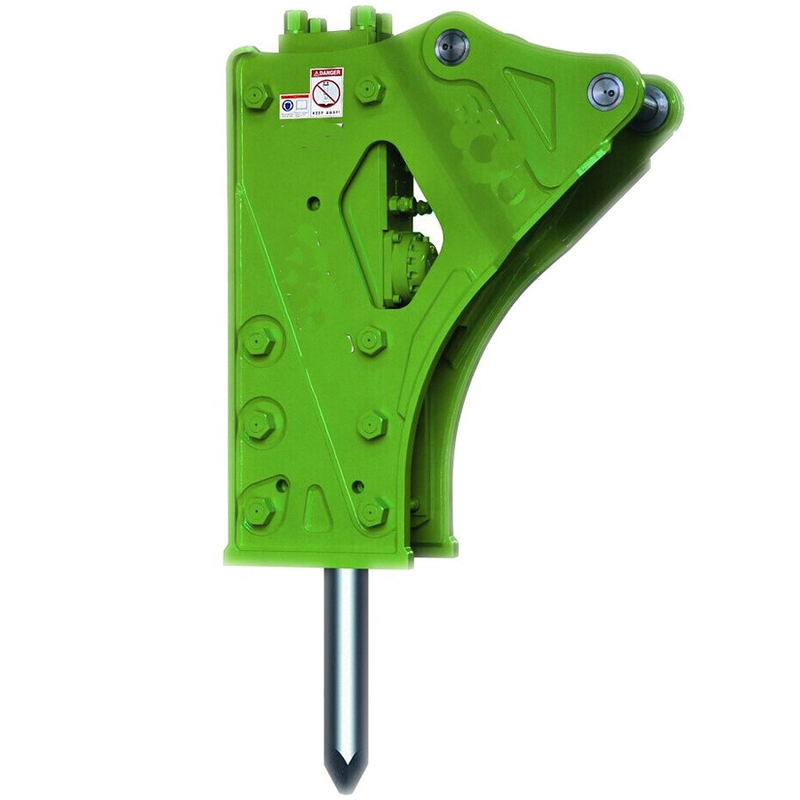

Hydraulic Hammer Concrete Rock Breakers Excavator Hydraulic Hammer with Chisels
Product Information
1. Suitable with a wide range of excavators and backhoe loaders
2. Korean equipment’s and technologyused to guarantee the quality.
3. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced
4. Longer usage, easy maintenance.
5. Strong " hydraulic + nitrogen " impact system.
6. The device can adjust the flow from excavator and power source, so it can adjust the impact force and beat frequency according to different working situation.
|
Name
|
Gross
Weight |
Total
length |
Total
width |
Operating
Pressure |
Oil flow
rate |
Impact
rate |
Hose
diameter |
Rod
diameter |
Applicable
vehicle Weight |
|
kg
|
mm
|
mm
|
kg/cm3
|
l/min
|
bpm
|
inch
|
mm
|
ton
|
|
|
SB10
|
70
|
972
|
192
|
90-120
|
15-30
|
800-1400
|
3/8 1/2
|
40
|
0.8-2.5
|
|
SB20
|
90
|
1071
|
191
|
90-120
|
20-40
|
700-1200
|
3/8 1/2
|
45
|
1.2-3.0
|
|
SB30
|
120
|
1147
|
203
|
90-120
|
25-50
|
600-1100
|
1/2
|
53
|
2.5-4.5
|
|
SB35
|
180
|
1239
|
247
|
100-130
|
30-60
|
500-100
|
1/2
|
60
|
3-5.5
|
|
SB40
|
250
|
1349
|
270
|
110-140
|
40-70
|
500-900
|
1/2
|
68
|
4.0-7.0
|
|
SB43
|
380
|
1618
|
315
|
120-150
|
50-90
|
400-800
|
1/2
|
75
|
6.0-9.0
|
|
SB45
|
510
|
1827
|
394
|
130-160
|
60-100
|
400-800
|
3/4
|
85
|
7.0-14
|
|
SB50
|
765
|
1934
|
408
|
150-170
|
80-110
|
350-700
|
3/4
|
100
|
11.0-16
|
|
SB60
|
1255
|
2195
|
508
|
150-170
|
90-120
|
350-650
|
1
|
125
|
15-18
|
|
SB81N
|
1462
|
2295
|
508
|
160-180
|
100-150
|
350-600
|
1
|
135
|
16-21
|
|
SB81
|
1740
|
2429
|
508
|
160-180
|
120-180
|
350-500
|
1
|
140
|
18-26
|
|
SB81A
|
1772
|
2429
|
508
|
160-180
|
120-180
|
350-500
|
1
|
140
|
18-26
|
|
SB100
|
2144
|
2623
|
578
|
160-180
|
150-210
|
300-450
|
1
|
150
|
25-30
|
|
SB121
|
2413
|
2776
|
610
|
160-180
|
180-240
|
300-450
|
1 1/4
|
155
|
28-35
|
|
SB130
|
2650
|
2953
|
630
|
160-180
|
200-260
|
250-400
|
1 1/4
|
165
|
30-45
|
|
SB147
|
2990
|
3031
|
630
|
160-180
|
200-260
|
200-350
|
1 1/4
|
165
|
30-45
|
|
SB160
|
3932
|
3211
|
665
|
160-180
|
230-290
|
150-300
|
1 1/4
|
180
|
40-55
|
Application
Our hydraulic breaker fit for various kinds of excavators and skid loader varying from DOOSAN DAEWOO, VOLVO, HITACH, KATO, KOBELCO, KOMATSU, SUMITOMO, LIEBHERR, HYUNDAI, CAT, JONYANG, CHANGJIANG, LISHIDE, SANY HEAVY INDUSTRIES etc.
